The Belmont
Elevations
Floor Plans

The Belmont

Features

Sq. Feet : 2480
Bedrooms : 3
Baths : 2
Garages : 2
Max Footprint : 58 W x 60 D
Master Bedroom is on 1st Floor

Print Brochure

Floor plans and elevations are copyrighted. © 2023 D & L Design Group. Inc. All Rights Reserved.

Elevations

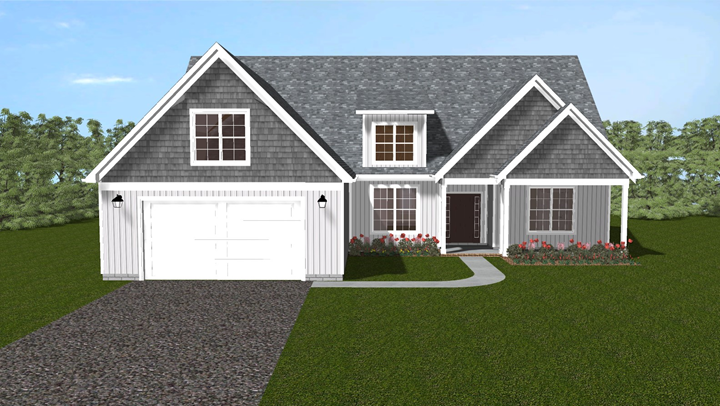

Craftsman

Craftsman

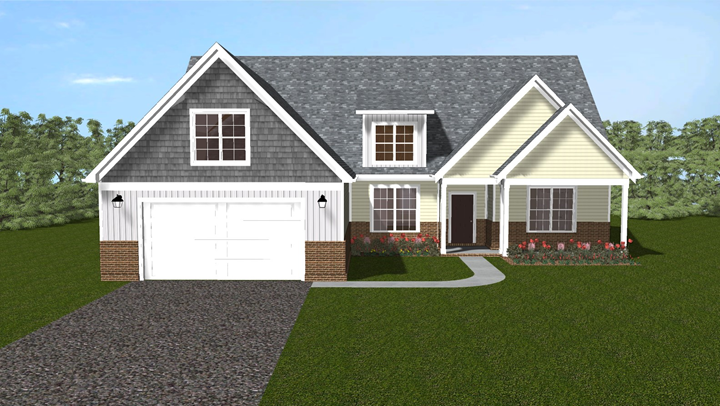

Craftsman w/Rowlock Brick

Craftsman w/Rowlock Brick

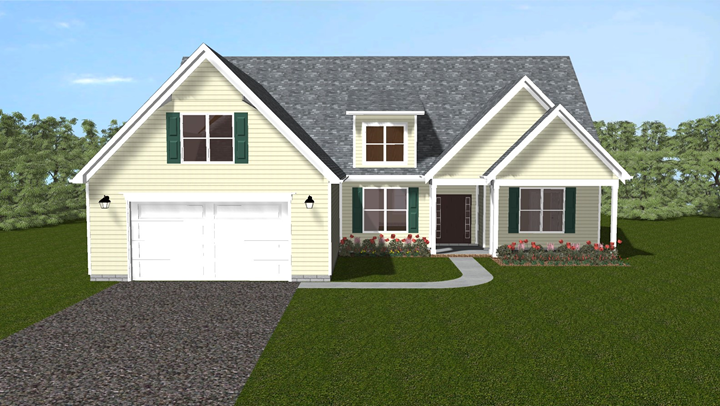

Siding w/Porch

Siding w/Porch

Floor Plans

Try out the interactive options for this floor plan.

1st Floor

Double Bowl Vanity in Hall Bath

Double Bowl Vanity in Master Bath

Fireplace Built-In Cabinets w/Shelving [Fireplace Option Required]

Side Entry Garage

Stained Interior Columns

Tray Ceiling in Dining Room

Tray Ceiling in Master Bedroom

Fireplace - Electric [Interior]

Fireplace - Gas Rear/Side Punch

2nd Floor

Add Full Bath in Bonus Room

Information deemed reliable but not guaranteed and subject to change without notice. Dimensions are estimates and may vary in construction. Photographs & renderings may reflect optional features and are for illustrative purposes only.

Floor plans and elevations are copyrighted. © 2023 D & L Design Group. Inc. All Rights Reserved.
